705C-HF-1.1/2"

Reference: 705C-HF-1.1/2"

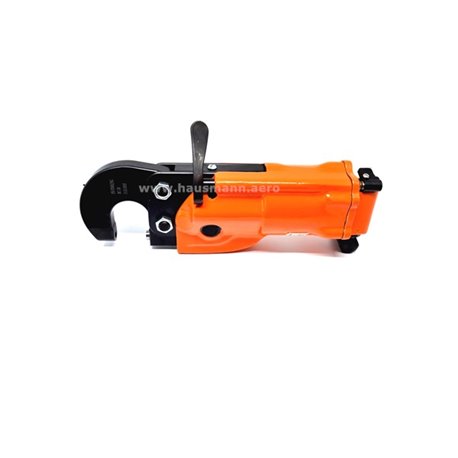

Compression Riveter-C-type, max. 4500 lbs.

Capacity Cold Rivet (Aluminium)	4,0 mm \| 5/32"
Capacity Cold Rivet (Steel)	3,2 mm \| 1/8"
Max. Travel	12,7 mm \| 1/2"
Max. Force with 90 P.S.I.	20,03 kn \| 4500 lbs.
Part of stroke at max. force	0,8 mm \| 1/32"

with Jaw 38 mm, 1.1/2" (538)
