114CC-1.1/2"

Reference: 114CC-1.1/2"

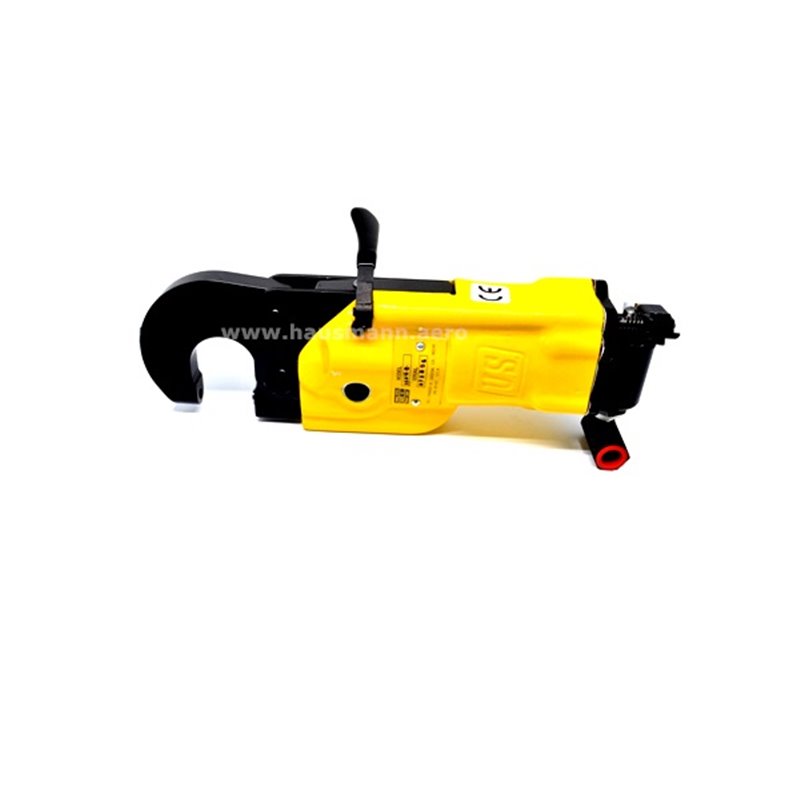

Compression Riveter-C-type, max. 4200 lbs.

Capacity Cold Rivet (Aluminium)	4,0 mm \| 5/32"
Capacity Cold Rivet (Steel)	3,2 mm \| 1/8""
Max. Travel	14,3 mm \| 9/16"
Max. Force with 90 P.S.I.	18,69 kn \| 4200 lbs.
Part of stroke at max. force	1,6 mm \| 1/16"

with Jaw 38 mm, 1.1/2" (538)
